Always know how your services connect.
An interactive microservice dependency visualiser that gives your team a live map of every service, dependency, and integration — ready in minutes, no backend required.
The Problem
Your architecture docs are out of date. Again.
Tribal knowledge in heads, stale Confluence pages, and Slack-thread archaeology are not a system. Service Map turns your YAML service definitions into a living, interactive graph that always reflects the real state of your stack.
- Confluence diagrams haven't been updated since the last reorg.
- New engineers spend days manually tracing service → service calls.
- Stakeholders ask questions you can only answer by reading source code.
- SaaS service maps charge €40 per seat and send your topology to a third party.
What's included
A dependency map built for real engineering teams.
Six capabilities, one YAML file, zero infrastructure. Drop the static build on any host and go.
Auto-Layout
Graph nodes are arranged automatically by a layout engine. No manual positioning. Ever.
Filter & Focus
Narrow down by product area, status, tech stack, or team. Zoom into any sub-graph with one click.
Hover Tracing
Instantly highlight all upstream and downstream dependencies from any node.
Shareable URLs
Every filter and node selection is encoded in the URL. Copy and share the exact view.
YAML-based
Describe services in simple YAML files. The graph updates automatically on every change.
Deploy Anywhere
Pure static files. Host on Netlify, Vercel, S3, or GitHub Pages — at zero hosting cost.
How It Works

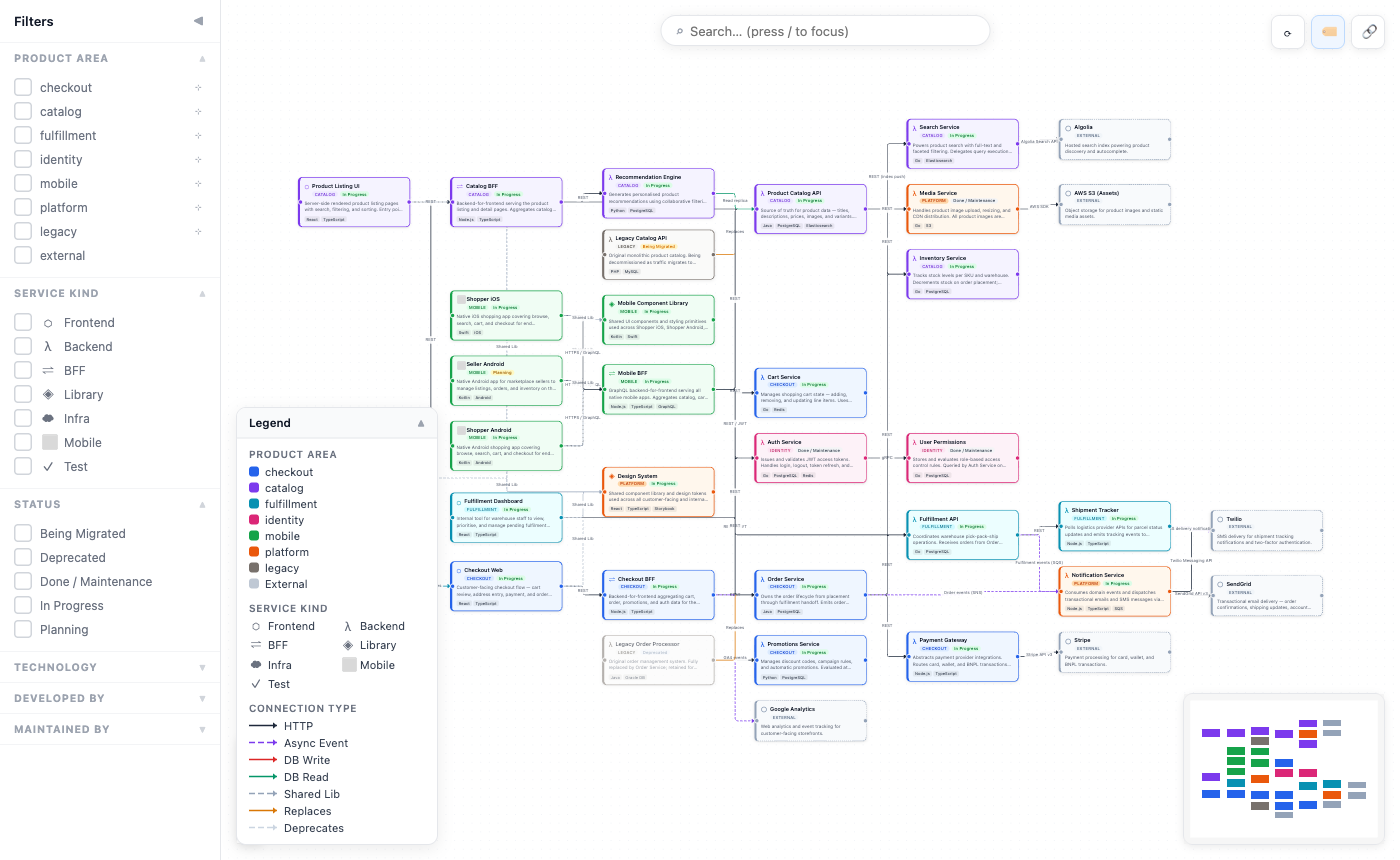

YAML in. Live graph out.
Edit a config file, push, deploy. The graph mirrors the truth in your repo — not a slide someone last updated in 2023.
id: checkout-svc area: orders team: payments tech: node-20 # all dependencies → depends_on: - cart-api - stripe-bff - inventory-svc consumes: - order-events
→ bundling 38 services → rendering dependency graph → static build ready · 412 KB → deployed to S3 · 3.2 s

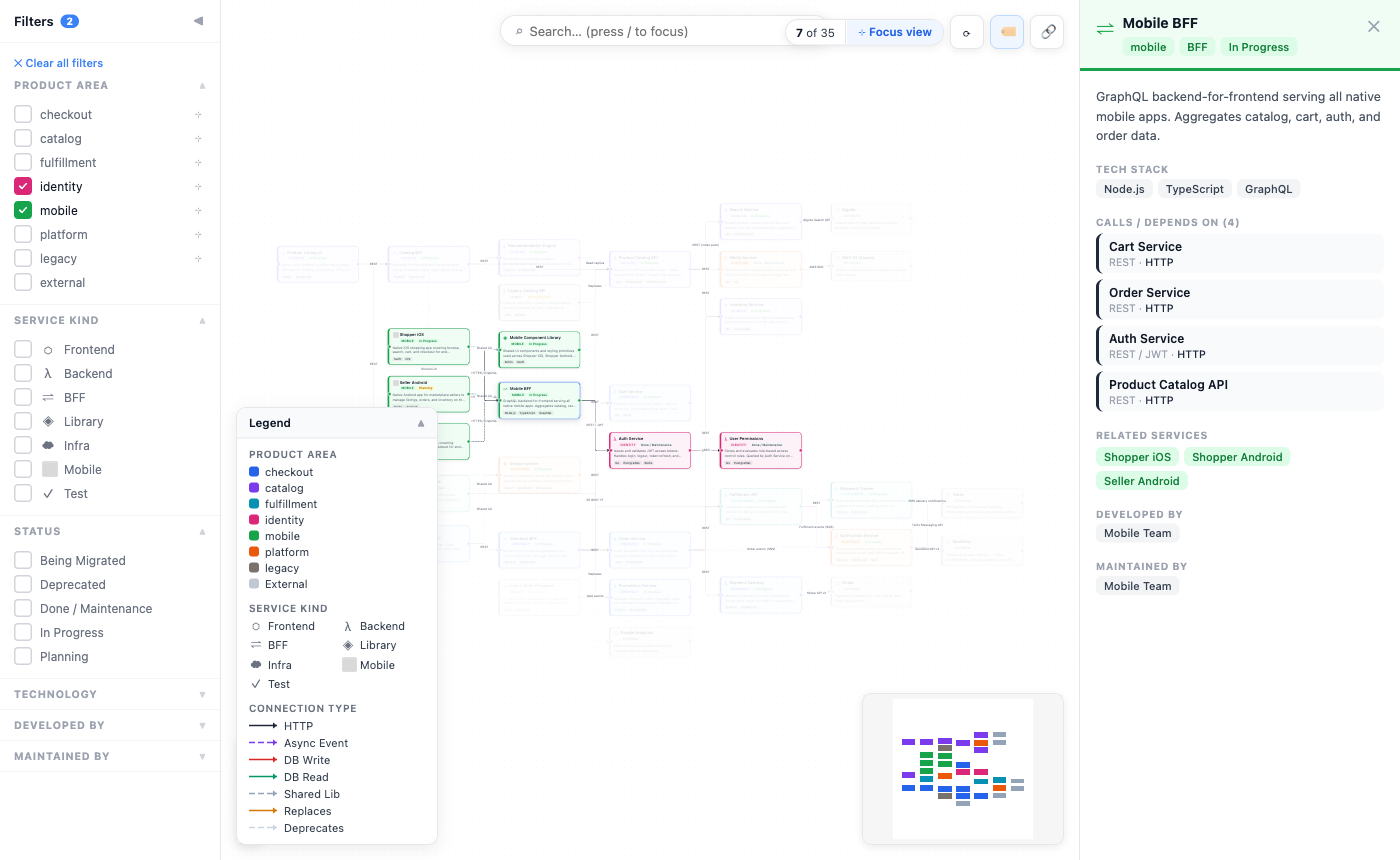

↑ Click any node — full dependency chain, tech stack, team ownership, related services.
Who It's For
Built for the whole engineering team.
Three perspectives on the same graph. One single source of truth.
Onboard in hours, not days.
Understand the whole system before touching a line of code. Trace call chains before making changes.
- System overview
- Impact analysis
- Safer refactors
Diagrams that stay up to date themselves.
Present accurate dependency diagrams to stakeholders without maintaining slides. Filter, share URL, done.
- Always-current docs
- Subsystem deep-dives
- Stakeholder views
The whole organisation, at a glance.
Track service ownership, migration status, and technical debt across the org — without dashboards.
- Ownership overview
- Migration tracking
- Tech debt visibility
Try it first
See the microservice dependency visualiser live.
Explore a real multi-service architecture with filtering, focus mode, and hover tracing. No sign-up, no email, no cookies. Just the tool.
What's included
Everything to start today.
One purchase. Source code, pre-built artefact, sample data, documentation.
- ✓ Full source codeTypeScript · Vite · Cytoscape.js
- ✓ Pre-built static filesdeploy on any host immediately
- ✓ Sample service dataworking graph straight out of the zip
- ✓ Documentationconfiguration · adding services · deployment
- ✓ 1 year of updatesfeatures & fixes via git pull
Technical requirements
Runs anywhere static runs.
No server, no database, no runtime dependencies after the build.
- → Deploy onNetlify · Vercel · GitHub Pages · S3
- → Build requirementsNode.js ≥ 20 · pnpm · one-time setup
- → No runtime backendpurely static after build · zero hosting cost
- → Browser supportChrome · Firefox · Safari · Edge
- → Your data, your infratopology never leaves your environment
Service Map · v1.0
No subscription. No usage fees. No expiry date.
